BC Single point load cell, 30kgf - 150kgf
⊙FEATURES
Low cost
Off center compensated
Protection class IP65
⊙Material
Anodized Aluminum

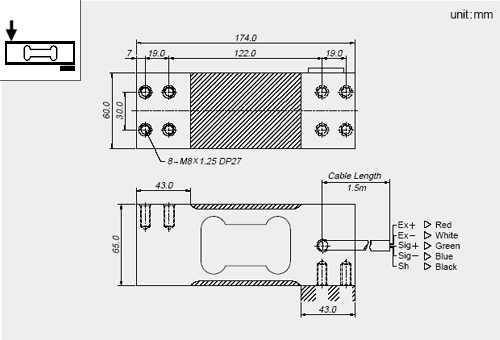

⊙Mounting
Socket-head cap screw M8 1.25(10.9)
Tightening torque: 29.5Nm
⊙Cable
Braided Shield 4-wire round cable
with PVC-Jacket
⊙Maximum Platform Size
400 600mm(W L)
⊙Ordering Information
BC - XXXD
━┳
Capacity in kg
| Max. capacity | kgf | 30, 60, 100, 150 |
Rated output
Zoro balance | mV/ V
mV/ V | 1.2 (Approx.)
0 ± 0.06 |
Combined error
Repeatability
Creep for 30min.
Temperature effect on
Zero Value
Output value | %
%
%
%/ 10℃
%/ 10℃
| 0.03
0.01
0.03
0.028
0.015 |
Excitation
Recommended
Maximum
Resistance
Input
Output
Insulation
|
V
V
Ω
Ω
MΩ |
10
15
420±20
350±3.5
＞2,000 |
Compensated temperature range
Operating temperature range | ℃
℃ | -10 to +40
-20 to +70 |
